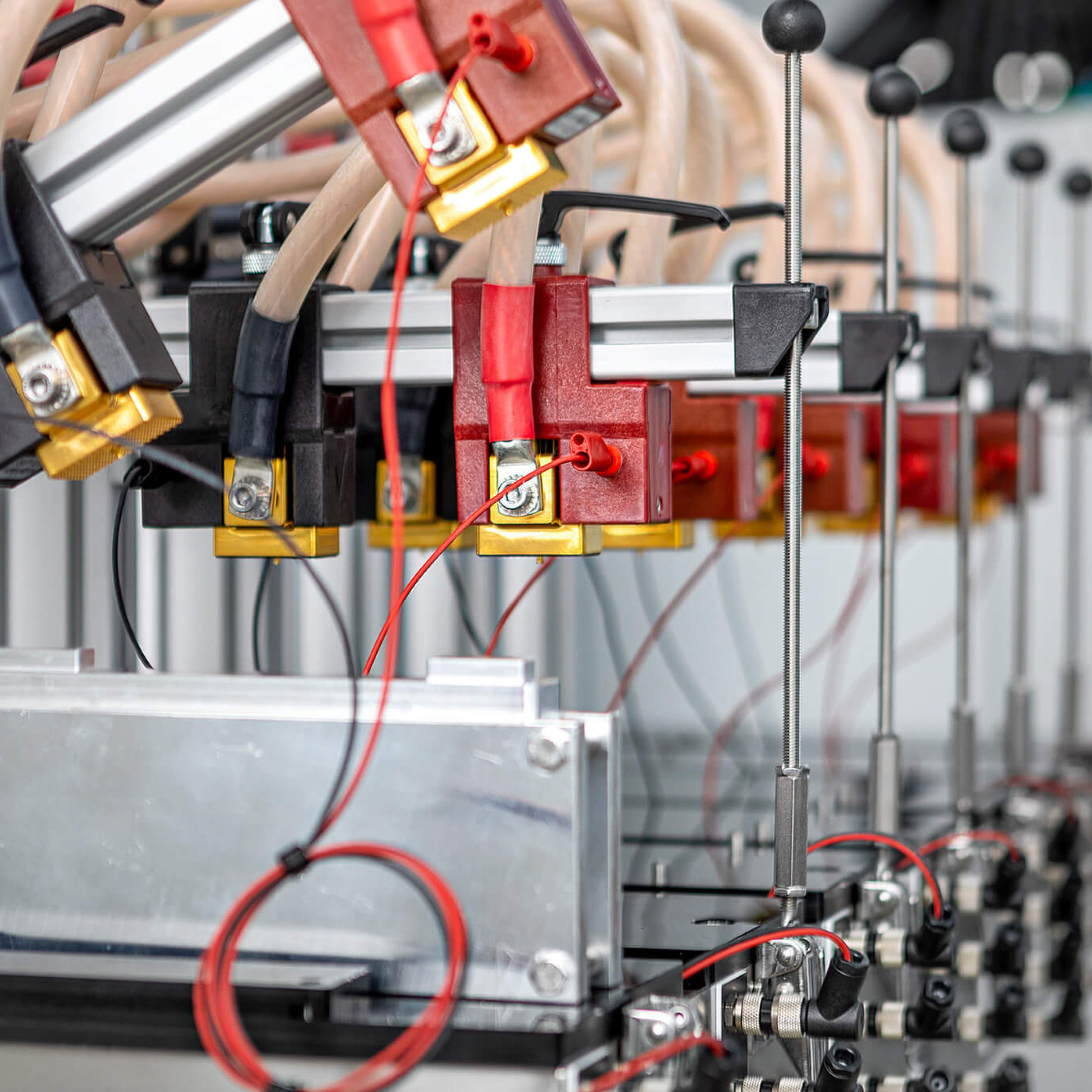

Flexible cell contacting while maintaining a high level of performance with the KS-600.

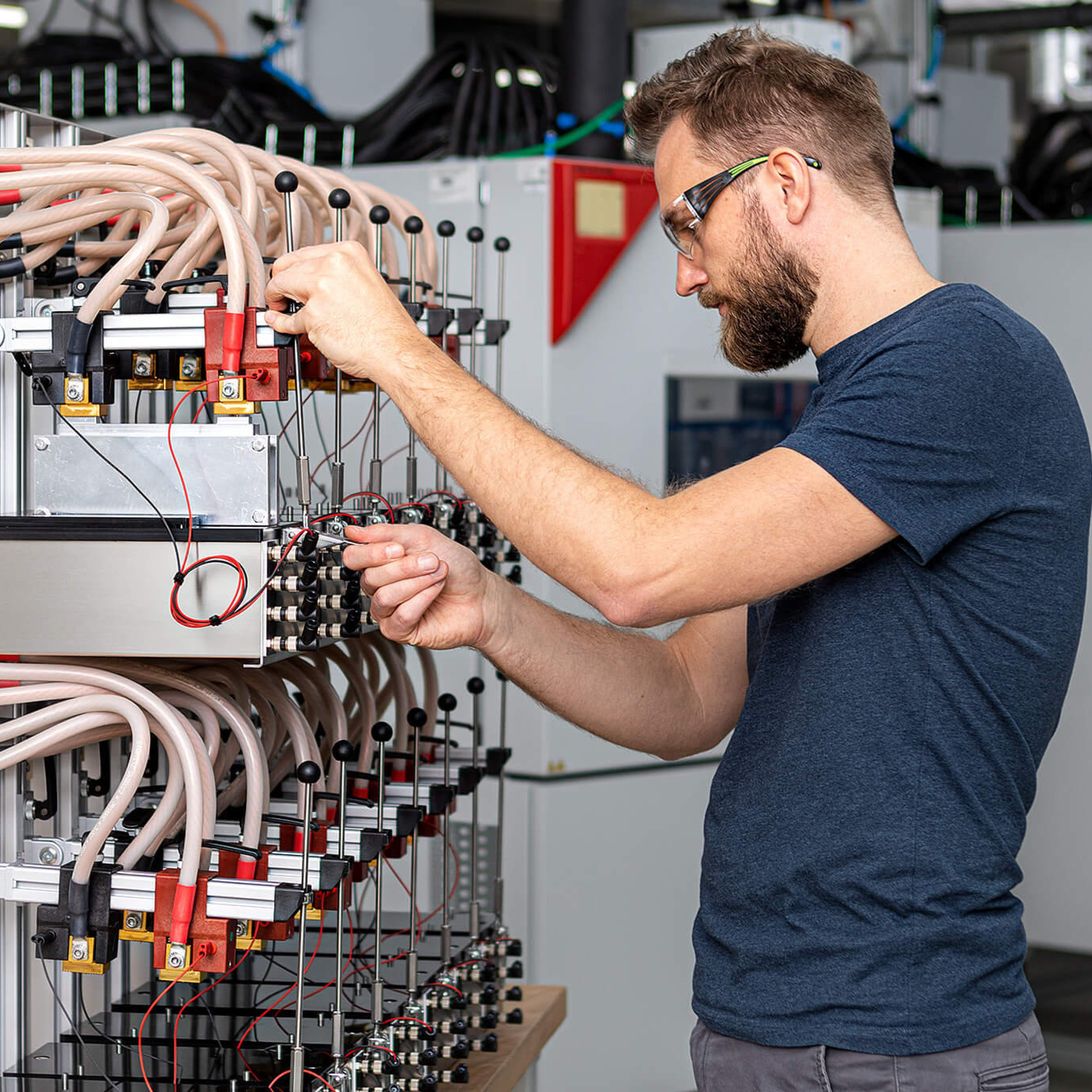

The KS-600 represents a powerful and compact contacting system for prismatic cells that can also be equipped for both round and pouch battery cells. Thanks to its sophisticated, highly flexible design, the KS-600 only needs to be installed and wired once in the test chamber. Afterwards, the system can quickly be converted for different cell sizes and formats in just a few steps – representing a significant time saving.
Compelling Flexibility
The KS-600 can be scaled as required – for multiple test channels and according to the test chamber size. It can be combined with several of our contacting systems. We also have a wide range of optional accessories available – ranging from parallel switching sets to set-up aids. And if additional functions are something you need– simply contact us. We will be happy to adapt the system to your needs.
-
Efficient contacting
Simple design and easy to use
-
Straightforward conversion
Possible without special tools
-
High efficiency
Continuous load at 600A (at 20°C)
-
Faster testing
Short set-up times when changing OUTs
-
Low weight
Minimal impact on test chamber performance
-
Customisable
To the OUT and test chamber size
Features at a glance
KS-600
The KS-600 is our most flexible solution for reliably contacting all types of cells.
For a wide variety of cell types
Our KS-600 can also accommodate round cells in combination with our KSR-150 and KSR-OS-150 contacting systems. We offer appropriate support adapters for pouch cells.
Widely scalable
Combine several KS-600 to create the desired number of test channels in your test chamber.
Options & extensions
We have numerous additional equipment options available, ranging from quick-release clamps and gold-plated contacts to plug sockets and handy set-up aids.
Technical Specifications
| KS-600 | |
|---|---|
Ampacity |
600 A (at max. 20 °C) |
Temperature range |
-40 °C … +80 °C |
Cell formats for prismatic cells |
DIN 91252:2016-11; Tabe 1: PHEV1, PHEV2, HEV1, HEV2, BEV1 to BEV4 and more |
Cell formats for pouch cells (with conversion kit) |
DIN 91252:2016-11; Table 5: HEV, PHEV1, PHEV2, BEV1 and many more |
Optional extensions: |
|
Cable duct & frontal sockets for sensor and temperature lines |
|
Gold plating contact elements |
|
Quick release for advanced operation |
|
Cable set for sensor and temperature lines |
|
Parallel switching set for achieving higher currents |
|
Extension set for pouch cells of different sizes |
|
Extension set for round cells of different sizes |
|
Extension set for special format round cells |
|
Set-up aid for prismatic cells |
|
Set-up aid for round cells |
|
Clamping plate set |
